Notes
Taqman qPCR protocols are run on a real time PCR instrument. Use an appropriate instrument specific Fluorophore/Quencher combination. The transgene genotype is determined by comparing ΔCt values of each unknown sample against known homozygous and hemizygous controls, using appropriate endogenous references.
The genotyping protocol(s) presented here have been optimized for reagents and conditions used by The Jackson Laboratory (JAX).
To genotype animals, JAX recommends researchers validate the assay independently upon receipt of animals into their facility.
Reaction cycling temperature and times may require additional optimization based on the specific genotyping reagents used.

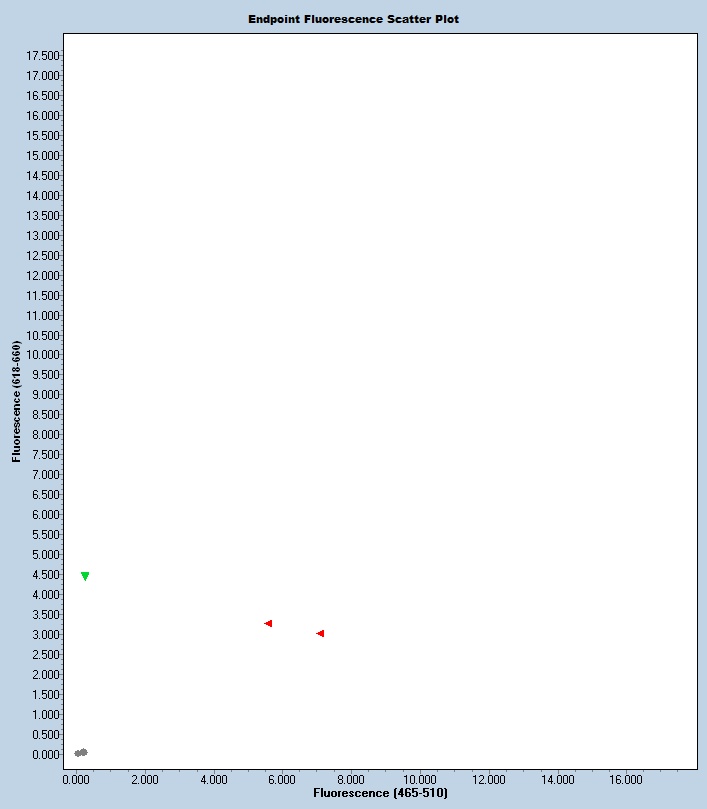

Expected Results
JAX Protocol
Protocol Primers
| Primer | 5' Label | Sequence 5' → 3' | 3' Label | Primer Type | Reaction | Note |
|---|---|---|---|---|---|---|
| 20454 | GAG GCT GAA GCT GAA GGA C | Transgene Forward | A | |||
| 20455 | GAT GGT GTA GTC CTC GTT GTG | Transgene Reverse | A | |||
| 20456 | Fluorophore-1 | CCA ACT TGA TGT TGA CGT TGT AGG CG | Quencher-1 | Tg Probe | ||
| oIMR1544 | CAC GTG GGC TCC AGC ATT | Internal Positive Control Forward | A | |||
| oIMR3580 | TCA CCA GTC ATT TCT GCC TTT G | Internal Positive Control Reverse | A | |||
| TmoIMR0105 | Fluorophore-2 | CCA ATG GTC GGG CAC TGC TCA A | Quencher-2 | IC Probe |
Reaction A
| Component | Final Concentration |
|---|---|
| Kapa Probe Fast QPCR | 1.00 X |
| ddH2O | |
| 20454 | 0.40 uM |
| 20455 | 0.40 uM |
| oIMR1544 | 0.40 uM |
| oIMR3580 | 0.40 uM |
| Wt Probe | 0.15 uM |
| Mutant Probe | 0.15 uM |
| DNA |
Cycling
| Step | Temp °C | Time | Note |
|---|---|---|---|
| 1 | 95.0 | -- | |
| 2 | 95.0 | -- | |
| 3 | 60.0 | -- | |
| 4 | -- | repeat steps 2-3 for 40 cycles | |
| 5 | 40.0 | -- | Forever |
JAX uses a very high speed Taq (~1000 bp/sec), use cycling times recommended for your reagents.
Strains Using This Protocol
| Stock Number | Strain Name |
|---|---|
| 040785 | B6(Cg)-Notch3tm1.1(NOTCH3)Arbo/J |
| 017614 | B6(Cg)-Tyrc-2J Tg(UBC-mCherry)1Phbs/J |
| 029540 | B6.129P2(Cg)-Cd19tm1.1Oao/J |
| 028624 | B6.Cg-S1pr3tm1.1Hrose/J |
| 025525 | B6.Cg-Tg(Cx3cl1/mCherry)1Jung/J |
| 030748 | B6.Cg-Tg(Krt18-RFP)1Jsaw/J |
| 030745 | B6.Cg-Tg(Krt5-ECFP)1Jsaw/J |
| 031693 | B6.FVB-Tg(CAG-EGFP,-Sumo1,-Sumo2,-Sumo3,-mCherry)10Weiy/J |
| 040890 | B6.FVB-Tg(Hcar2-mRFP)1Soff/J |
| 006679 | B6;129P2-Or8a1tm27Mom/MomJ |
| 029899 | B6;129S6-Gt(ROSA)26Sortm2(CAG-NuTRAP)Evdr/J |
| 021577 | B6;D2-Tg(Myh6*-mCherry)2Mik/J |
| 025406 | B6;FVB-Tg(RP23-370F21-GCaMP3*/mCherry)1Mik/J |
| 024046 | C57BL/6-Tg(Csf1r-HBEGF/mCherry)1Mnz/J |
| 040416 | C57BL/6J-Igs2em1(CAG-mCherry,-Cxcr3*,-GFP*)Miji/J |
| 040208 | C57BL/6J-Igs2em1(CAG-RFP*/GFP*)Qsun/J |
| 021423 | C57BL/6J-Tg(Dlx2-cre,-mCherry)9Grsr/GrsrJ |
| 018542 | FVB-Tg(Kdr-mCherry)1Medi/J |
| 021853 | FVB-Tg(Myh6-mCherry/Map1lc3a)1Rag/J |
| 018067 | FVB-Tg(Prism)1849Htz/J |
| 018071 | FVB-Tg(Prism)1861Htz/J |
| 032145 | FVB/N-Tg(Kdr-mCherry)1Medi/2J |
| 034270 | NOD/ShiLtJ-Flt3em1Doi/J |
| 039157 | STOCK Lcn2tm2Bara Tyrc-2J/J |
| 029429 | STOCK Or8a1tm26Mom Tg(Or8a1,-MAPT/mCherry)5MGaFeins/J |
| 040810 | STOCK Pou2af1em1Dtan/J |
| 014177 | STOCK Tg(Afp-mCherry)1Hadj/J |
| 027967 | STOCK Tg(CAG-Arl13b/mCherry)1Kvand Tg(CAG-EGFP/CETN2)3-4Jgg/KvandJ |
| 025693 | STOCK Tg(CAG-mCherry/Pxn)#Mgin/KleyJ |
| 029600 | STOCK Tg(Or8a1-OR1A1,-MAPT/mCherry)D736Feins/J |
| 017470 | STOCK Tg(Tnc-mCherry)2Pmay/J |
| 011108 | STOCK Tg(Ttr-RFP)1Hadj/J |
| 32 strains use this protocol | |
