Notes
This assay will NOT distinguish hemizygous from homozygous transgenic animals.
The genotyping protocol(s) presented here have been optimized for reagents and conditions used by The Jackson Laboratory (JAX).
To genotype animals, JAX recommends researchers validate the assay independently upon receipt of animals into their facility.
Reaction cycling temperature and times may require additional optimization based on the specific genotyping reagents used.

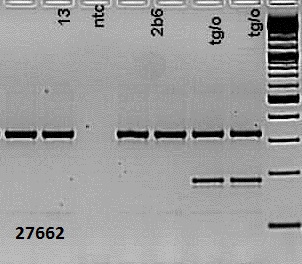

Expected Results
Transgene = 200 bp
Internal positive control = 324 bp
Internal positive control = 324 bp
JAX Protocol
Protocol Primers
| Primer | 5' Label | Sequence 5' → 3' | 3' Label | Primer Type | Reaction | Note |
|---|---|---|---|---|---|---|
| 10946 | AAA TCG CTC CGG ATA CTG CG | Transgene Forward | A | firefly luc | ||
| 10947 | AGG GTT GGT ACT AGC AAC GC | Transgene Reverse | A | firefly luc | ||
| oIMR7338 | CTA GGC CAC AGA ATT GAA AGA TCT | Forward | A | |||
| oIMR7339 | GTA GGT GGA AAT TCT AGC ATC ATC C | Reverse | A |
Reaction A
| Component | Final Concentration |
|---|---|
| ddH2O | |
| Kapa 2G HS buffer | 1.30 X |
| MgCl2 | 2.60 mM |
| dNTP KAPA | 0.26 mM |
| 10946 | 0.50 uM |
| 10947 | 0.50 uM |
| oIMR7338 | 0.50 uM |
| oIMR7339 | 0.50 uM |
| Glycerol | 6.50 % |
| Dye | 1.00 X |
| Kapa 2G HS taq polym | 0.03 U/ul |
| DNA |
Cycling
| Step | Temp °C | Time | Note |
|---|---|---|---|
| 1 | 94.0 | -- | |
| 2 | 94.0 | -- | |
| 3 | 65.0 | -- | -0.5 C per cycle decrease |
| 4 | 68.0 | -- | |
| 5 | -- | repeat steps 2-4 for 10 cycles (Touchdown) | |
| 6 | 94.0 | -- | |
| 7 | 60.0 | -- | |
| 8 | 72.0 | -- | |
| 9 | -- | repeat steps 6-8 for 28 cycles | |
| 10 | 72.0 | -- | |
| 11 | 10.0 | -- | hold |
JAX uses a very high speed Taq (~1000 bp/sec), use cycling times recommended for your reagents.
JAX uses a 'touchdown' cycling protocol and therefore has not calculated the optimal annealing temperature for each set of primers.
Strains Using This Protocol
| Stock Number | Strain Name |
|---|---|
| 006100 | B10.Cg-H2k Tg(NFkB/Fos-luc)26Rinc/J |
| 025854 | B6;FVB-Ptprca Tg(CAG-luc,-GFP)L2G85Chco Thy1a/J |
| 010545 | C.FVB-Tg(CAG-luc,-GFP)L2G85Chco/FathJ |
| 027662 | C57BL/6-Tyrc-Brd Tg(Gh1-luc/EGFP)D8Mrln/J |
| 027832 | FVB/N-Tg(ABCB1-luc)1Egsch/J |
| 025855 | STOCK Ptprca Lag3tm1Doi Tg(CAG-luc,-GFP)L2G85Chco Thy1a/J |
| 6 strains use this protocol | |
