Notes
The genotyping protocol(s) presented here have been optimized for reagents and conditions used by The Jackson Laboratory (JAX).
To genotype animals, JAX recommends researchers validate the assay independently upon receipt of animals into their facility.
Reaction cycling temperature and times may require additional optimization based on the specific genotyping reagents used.

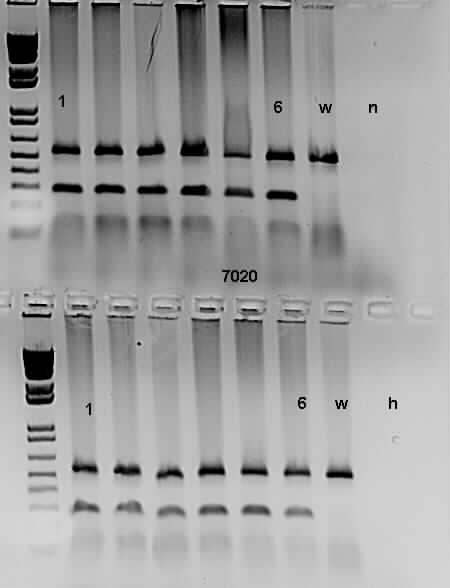

Expected Results
Mutant = 282 bp
Heterozygote = 282 bp and 537 bp
Wild type = 537 bp
Heterozygote = 282 bp and 537 bp
Wild type = 537 bp
Separated by gel electrophoresis on a 1.5% agarose gel.
JAX Protocol
Protocol Primers
| Primer | 5' Label | Sequence 5' → 3' | 3' Label | Primer Type | Reaction | Note |
|---|---|---|---|---|---|---|
| oIMR6966 | GCC AAA CGC AAA CCT TAC CAG AGT G | Wild type Forward | A | |||
| oIMR6967 | ACG GAC ACA TCC AGA AGA AAA CGG | Wild type Reverse | A | |||
| oIMR6968 | TTC GGC TAT GAC TGG GCA CAA CAG | Mutant Forward | A | Neo | ||
| oIMR6969 | TAC TTT CTC GGC AGG AGC AAG GTG | Mutant Reverse | A | Neo |
Reaction A
| Component | Final Concentration |
|---|---|
| ddH2O | |
| Kapa 2G HS buffer | 1.30 X |
| MgCl2 | 2.60 mM |
| dNTP KAPA | 0.26 mM |
| oIMR6966 | 0.50 uM |
| oIMR6967 | 0.50 uM |
| oIMR6968 | 0.50 uM |
| oIMR6969 | 0.50 uM |
| Glycerol | 6.50 % |
| Dye | 1.00 X |
| Kapa 2G HS taq polym | 0.03 U/ul |
| DNA |
Cycling
| Step | Temp °C | Time | Note |
|---|---|---|---|
| 1 | 94.0 | -- | |
| 2 | 94.0 | -- | |
| 3 | 65.0 | -- | -0.5 C per cycle decrease |
| 4 | 68.0 | -- | |
| 5 | -- | repeat steps 2-4 for 10 cycles (Touchdown) | |
| 6 | 94.0 | -- | |
| 7 | 60.0 | -- | |
| 8 | 72.0 | -- | |
| 9 | -- | repeat steps 6-8 for 28 cycles | |
| 10 | 72.0 | -- | |
| 11 | 10.0 | -- | hold |
JAX uses a very high speed Taq (~1000 bp/sec), use cycling times recommended for your reagents.
JAX uses a 'touchdown' cycling protocol and therefore has not calculated the optimal annealing temperature for each set of primers.
Strains Using This Protocol
This is the only strain that uses this protocol.
