Notes
The genotyping protocol(s) presented here have been optimized for reagents and conditions used by The Jackson Laboratory (JAX).
To genotype animals, JAX recommends researchers validate the assay independently upon receipt of animals into their facility.
Reaction cycling temperature and times may require additional optimization based on the specific genotyping reagents used.

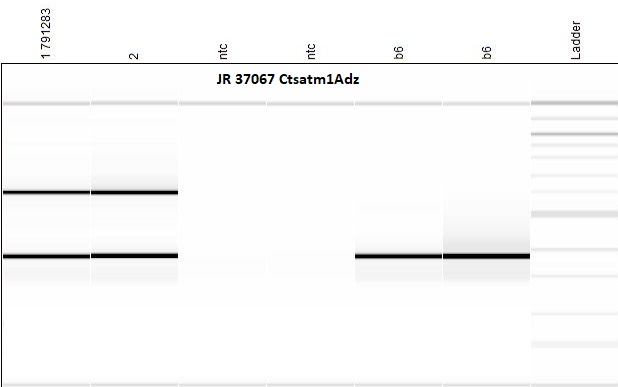

Expected Results
>chr2:164833834+164834188 355bp GACGCAAGGAAGCAGAGGTA GTCCGATGCTCTGAGGTAGC
Mutant = ~600 bp
Heterozygote = ~600 bp and 355 bp
Wild type = 355 bp
Sequence
Mutant sequence:
TGCGGCCCGCTGTTGACGCTGTTAAGCGGGTCGCTGCAGGGTCGCTCGGTGTTCGAGGCCACACGCGTCACCTTAATATGCGAAGTGGACCTGGGACCGCGCCGCCCCGActgcatctgcgtgttcgaattcgCCAATGACAAGACGCTGGGCGGGGTTTGTGTCATCATAGAACTAAAGACATGCAAATATATTTCTTCCGGGGACACCGCCAGCAAACGCGAGCAACGGGCCACGGGGATGAAGCAGGGGTACCGAGCTCGAATTCGCCAATGACAAGACGCTGGGCGGGGTTTGCTCGACATTGGGTGGAAACATTCCAGGCCTGGGTGGAGAGGCTTTTGGGTTCCTCTGGCAAAGCCACACTGCTCGACATTGGGTGGAAACATTCCAGCCCTGGGTGGAGAGGATTTTTGCTTCCTTAGAAAACCACACTGTTCGAGGTTGAATCACCGCCCCTCTCCACTGCTCTTGTTGCTGCTCCCGTCCAGGGCGCCCTGGAACGAAGCACCCCC
JAX Protocol
Protocol Primers
| Primer | 5' Label | Sequence 5' → 3' | 3' Label | Primer Type | Reaction | Note |
|---|---|---|---|---|---|---|
| 60621 | TGC GGC ACG CTG TTG ACG C | Mutant Forward | B | |||
| 60622 | GAC GCA AGG AAG CAG AGG TA | Wild type Forward | A | |||
| 60623 | GTC CGA TGC TCT GAG GTA GC | Common | A, B |
Reaction A
| Component | Final Concentration |
|---|---|
| ddH2O | |
| Kapa 2G HS buffer | 1.30 X |
| MgCl2 | 2.60 mM |
| dNTPS-kapa | 0.26 mM |
| 60622 | 0.50 uM |
| 60623 | 0.50 uM |
| Glycerol | 6.50 % |
| Dye | 1.00 X |
| Kapa 2G HS taq polym | 0.03 U/ul |
| DNA |
Cycling
| Step | Temp °C | Time | Note |
|---|---|---|---|
| 1 | 94.0 | -- | |
| 2 | 94.0 | -- | |
| 3 | 65.0 | -- | -0.5 C per cycle decrease |
| 4 | 68.0 | -- | |
| 5 | -- | repeat steps 2-4 for 10 cycles (Touchdown) | |
| 6 | 94.0 | -- | |
| 7 | 60.0 | -- | |
| 8 | 72.0 | -- | |
| 9 | -- | repeat steps 6-8 for 28 cycles | |
| 10 | 72.0 | -- | |
| 11 | 10.0 | -- | hold |
JAX uses a very high speed Taq (~1000 bp/sec), use cycling times recommended for your reagents.
JAX uses a 'touchdown' cycling protocol and therefore has not calculated the optimal annealing temperature for each set of primers.
Reaction B
| Component | Final Concentration |
|---|---|
| ddH2O | |
| Kapa 2G HS buffer | 1.30 X |
| MgCl2 | 2.60 mM |
| dNTPS-kapa | 0.26 mM |
| 60621 | 0.50 uM |
| 60623 | 0.50 uM |
| Glycerol | 6.50 % |
| Dye | 1.00 X |
| Kapa 2G HS taq polym | 0.03 U/ul |
| DNA |
Cycling
| Step | Temp °C | Time | Note |
|---|---|---|---|
| 1 | 94.0 | -- | |
| 2 | 94.0 | -- | |
| 3 | 65.0 | -- | -0.5 C per cycle decrease |
| 4 | 68.0 | -- | |
| 5 | -- | repeat steps 2-4 for 10 cycles (Touchdown) | |
| 6 | 94.0 | -- | |
| 7 | 60.0 | -- | |
| 8 | 72.0 | -- | |
| 9 | -- | repeat steps 6-8 for 28 cycles | |
| 10 | 72.0 | -- | |
| 11 | 10.0 | -- | hold |
JAX uses a very high speed Taq (~1000 bp/sec), use cycling times recommended for your reagents.
JAX uses a 'touchdown' cycling protocol and therefore has not calculated the optimal annealing temperature for each set of primers.
Strains Using This Protocol
This is the only strain that uses this protocol.
