Notes
This assay will NOT distinguish hemizygous from homozygous transgenic animals.
The genotyping protocol(s) presented here have been optimized for reagents and conditions used by The Jackson Laboratory (JAX).
To genotype animals, JAX recommends researchers validate the assay independently upon receipt of animals into their facility.
Reaction cycling temperature and times may require additional optimization based on the specific genotyping reagents used.

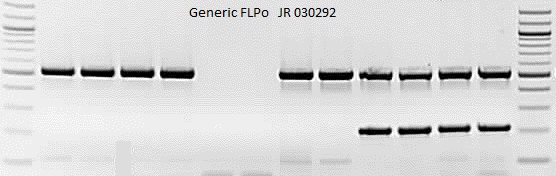

Expected Results
Transgene = 206 bp
Internal positive control = 521 bp
JAX Protocol
Protocol Primers
| Primer | 5' Label | Sequence 5' → 3' | 3' Label | Primer Type | Reaction | Note |
|---|---|---|---|---|---|---|
| 31704 | AGT GGC CTC TTC CAG AAA TG | Internal Positive Control Forward | A | |||
| 31705 | TGC GAC TGT GTC TGA TTT CC | Internal Positive Control Reverse | A | |||
| 32688 | ACA AGG GCA ACA GCC ACA G | Transgene Forward | A | |||
| 32689 | CTC TTG GGG TCC ACG TTC T | Transgene Reverse | A |
Reaction A
| Component | Final Concentration |
|---|---|
| ddH2O | |
| Kapa 2G HS buffer | 1.30 X |
| MgCl2 | 2.60 mM |
| dNTP KAPA | 0.26 mM |
| 31704 | 0.50 uM |
| 31705 | 0.50 uM |
| 32688 | 0.50 uM |
| 32689 | 0.50 uM |
| Glycerol | 6.50 % |
| Dye | 1.00 X |
| Kapa 2G HS taq polym | 0.03 U/ul |
| DNA |
Cycling
| Step | Temp °C | Time | Note |
|---|---|---|---|
| 1 | 94.0 | -- | |
| 2 | 94.0 | -- | |
| 3 | 65.0 | -- | -0.5 C per cycle decrease |
| 4 | 68.0 | -- | |
| 5 | -- | repeat steps 2-4 for 10 cycles (Touchdown) | |
| 6 | 94.0 | -- | |
| 7 | 60.0 | -- | |
| 8 | 72.0 | -- | |
| 9 | -- | repeat steps 6-8 for 28 cycles | |
| 10 | 72.0 | -- | |
| 11 | 10.0 | -- | hold |
JAX uses a very high speed Taq (~1000 bp/sec), use cycling times recommended for your reagents.
JAX uses a 'touchdown' cycling protocol and therefore has not calculated the optimal annealing temperature for each set of primers.
Strains Using This Protocol
| Stock Number | Strain Name |
|---|---|
| 040970 | B6(Cg)-Brs3em1(flpo)Rei/J |
| 038534 | B6(Cg)-Foxp3tm1.1(flpo)Daav/J |
| 012930 | B6.129S4-Gt(ROSA)26Sortm2(FLP*)Sor/J |
| 039198 | B6.129S6-Ptf1atm1(flpo)Hcrd/J |
| 033952 | B6.129S7(FVB)-Dbhtm1.1(flpo)Pjen/J |
| 035532 | B6.Cg-Sntb1tm1.1Scf/J |
| 039739 | B6.Cg-Ucmatm1(flpo)Hze/J |
| 039199 | B6.Cg-Tg(Sox2-flpo)4.2.28Mhem/J |
| 033850 | B6;SJL-Tg(Chat-flpo)22Majh/J |
| 040187 | C57BL/6-Adora2aem2(flpo)Rcos/J |
| 040716 | C57BL/6-Avptm1.1(flpo)Gdol/J |
| 040189 | C57BL/6-Drd1em2(flpo)Rcos/J |
| 040184 | C57BL/6-Slc6a3em1(flpo)Rcos/J |
| 041282 | C57BL/6-Trpa1tm1.1(flp)Ttc/J |
| 041283 | C57BL/6-Trpv1tm1.1(flp)Ttc/J |
| 040836 | C57BL/6J-Cux1em1(flpo)Zjh/J |
| 040838 | C57BL/6J-Igfn1em1(flpo)Zjh/J |
| 041616 | C57BL/6J-Tac1em1(flp)Pc/J |
| 040837 | C57BL/6J-Wfs1em1(flpo)Zjh/J |
| 030288 | FVB/N-Tg(Cdx2-flpo)2Ddg/J |
| 039436 | FVB/N-Tg(MMTV-flpo)9Gcr/J |
| 038629 | STOCK Gt(ROSA)26Sortm65.2(CAG-tdTomato)Hze Pdgfrbtm1.1(flpo)Leol/LeolJ |
| 030755 | STOCK Htr3atm1.1(flpo)Rudy/J |
| 040326 | STOCK Mettl3tm1.1Jcbr/MgkJ |
| 038627 | STOCK Pdgfratm1(flpo)Leol Gt(ROSA)26Sortm65.2(CAG-tdTomato)Hze/LeolJ |
| 039795 | STOCK Pthlhtm1(flpo)Zjh/J |
| 039724 | STOCK Vimtm2(flpo)Ggen/J |
| 27 strains use this protocol | |
