Notes
This assay can distinguish hemi from hom
The genotyping protocol(s) presented here have been optimized for reagents and conditions used by The Jackson Laboratory (JAX).
To genotype animals, JAX recommends researchers validate the assay independently upon receipt of animals into their facility.
Reaction cycling temperature and times may require additional optimization based on the specific genotyping reagents used.

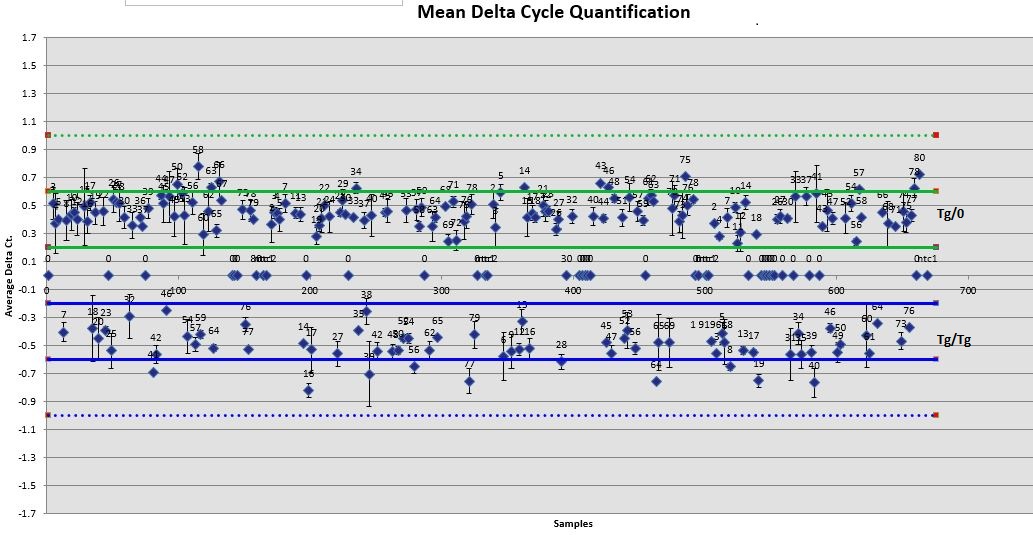

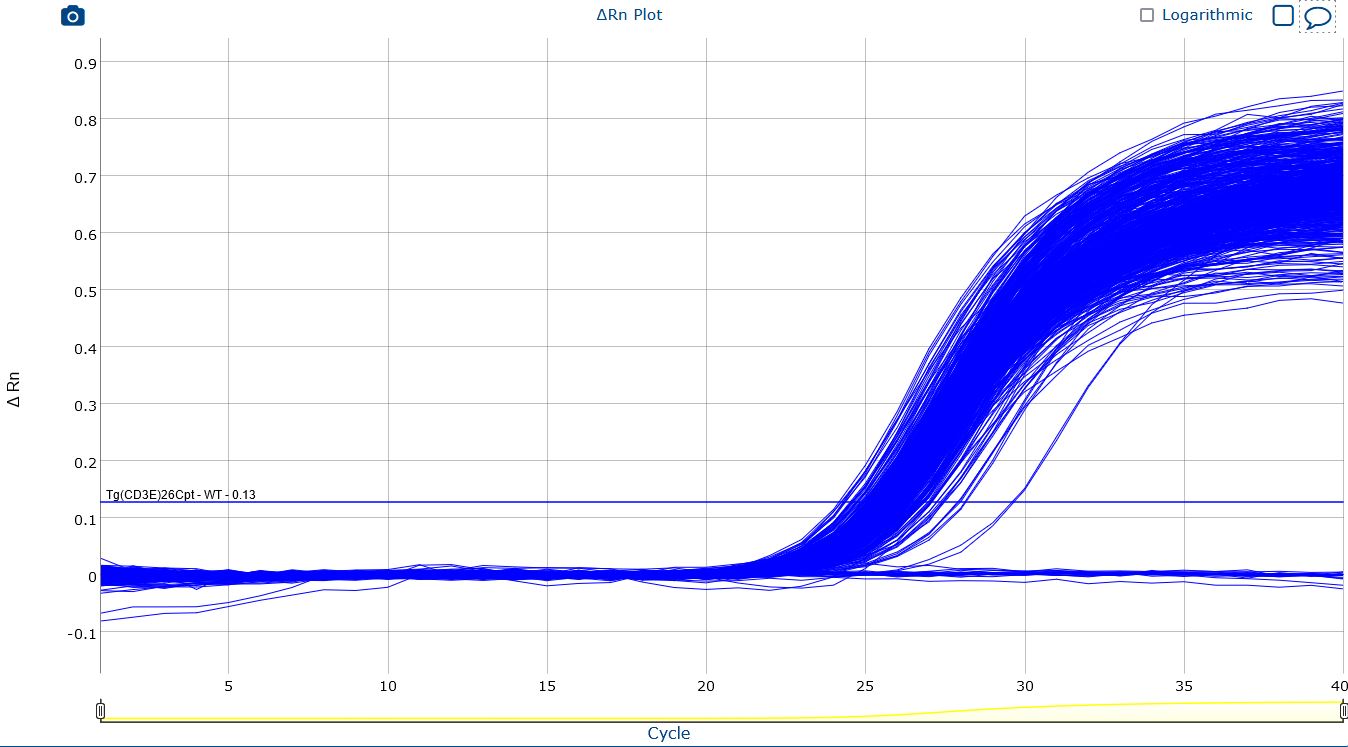

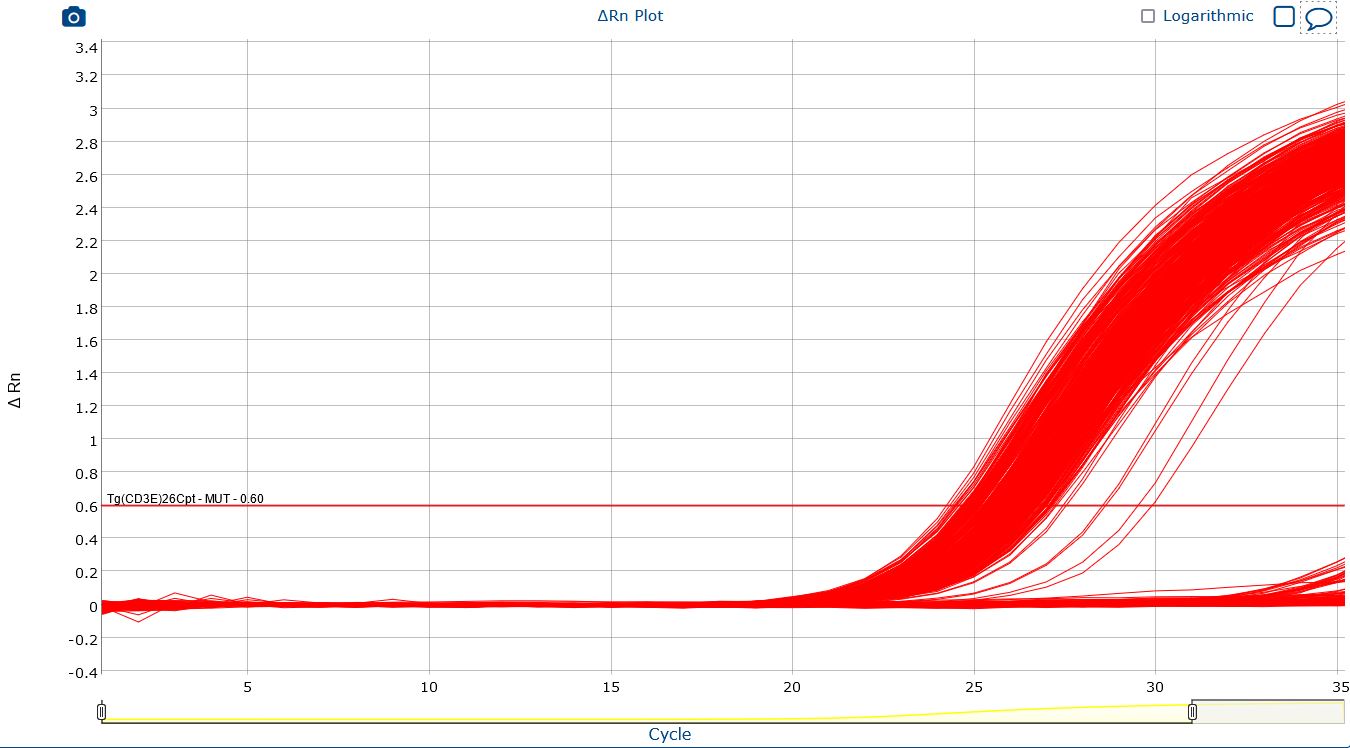

Expected Results
TG= 73 bp
IPC= 74 bp
Fam=Mut
Cy5=IPC
Sequence
Tg Sequence:
ggctctgaccgtggcaagcgtgtgagtagtaaggggagaatggccttcatgcactccctcctcacctccagcgccttgtgttttccttgcttagtgatttcccctctccccaccccaccccccacagTGTGTGAGAACTGCATGGAGATGGATGTGATGTCGGTGGCCACAATTGTCATAGTGGACATCTGCATCACTGGGGGCTTGCTGCTGCTGGTTTACTACTGGAGCAAGAATAGAAAGGCCAAGGCCAAGCCTGTGACACGAGGAGCGGGTGCTGGCGGCAGGCAAAGGGgtaaggctgtggagtccagtcagaggagattcctgccaagggggacgaccagcctgggccagggtgggtggcaagtccacagctaggtcagaacagcttctctagagcttctatgcacagcttctattactgtgatgacaagatctcaacagacggtttcaaatctcacatcactcccctccttc
JAX Protocol
Protocol Primers
| Primer | 5' Label | Sequence 5' → 3' | 3' Label | Primer Type | Reaction | Note |
|---|---|---|---|---|---|---|
| 67294 | GTG GAC ATC TGC ATC ACT GG | Transgene Forward | A | |||
| 67295 | TGG CCT TGG CCT TTC TAT TC | Transgene Reverse | A | |||
| 67296 | Fluorophore-1 | CTG CTG CTG GTT TAC TAC TGG AGC | Quencher-1 | Tg Probe | ||
| oIMR1544 | CAC GTG GGC TCC AGC ATT | Internal Positive Control Forward | A | |||
| oIMR3580 | TCA CCA GTC ATT TCT GCC TTT G | Internal Positive Control Reverse | A | |||
| TmoIMR0105 | Fluorophore-2 | CCA ATG GTC GGG CAC TGC TCA A | Quencher-2 | IC Probe |
Reaction A
| Component | Final Concentration |
|---|---|
| Kapa Probe Fast QPCR | 1.00 X |
| ddH2O | |
| 67294 | 0.40 uM |
| 67295 | 0.40 uM |
| oIMR1544 | 0.40 uM |
| oIMR3580 | 0.40 uM |
| Tg Probe | 0.15 uM |
| IC Probe | 0.15 uM |
| DNA |
Cycling
| Step | Temp °C | Time | Note |
|---|---|---|---|
| 1 | 95.0 | -- | |
| 2 | 95.0 | -- | |
| 3 | 60.0 | -- | repeat steps 2-3 for 40 cycles |
JAX uses a very high speed Taq (~1000 bp/sec), use cycling times recommended for your reagents.
