Notes
Mutant = GCA/GCA
Heterozygote = CAT/GCA
Wild type = CAT/CAT
The genotyping protocol(s) presented here have been optimized for reagents and conditions used by The Jackson Laboratory (JAX).
To genotype animals, JAX recommends researchers validate the assay independently upon receipt of animals into their facility.
Reaction cycling temperature and times may require additional optimization based on the specific genotyping reagents used.

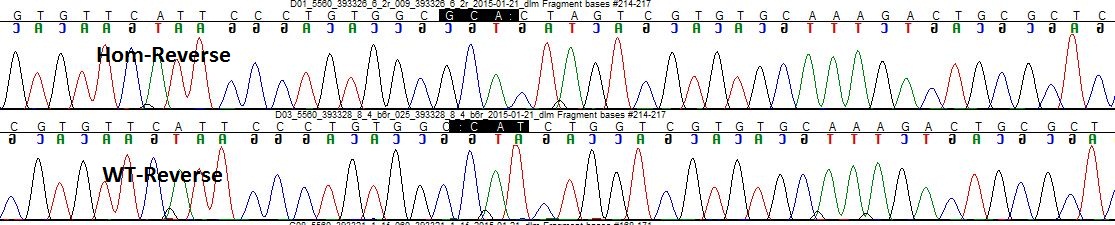

Expected Results
Sequence
ttattttcttgggatttcactagaggaaaagcaaattgttcttcattgaaaatcctcttatcttccatcacatggcatc
atatgccgtgggaccagtgcttggaaactggaggcgggaggatcagagtttgaagtcaggctgtgttttaa
ataaagcatttcccctcttcacagCTCTACCAATGGAAGAACAGTTGCGGAAACTCCAGGA
GGAAAGAATGTGTAAAGTGTGTATGGACCGAGAGGTATCCATCGTGTTCATTCCC
TGTGGC(c/g)(a/c)(t/a)CTGGTCGTGTGCAAAGACTGCGCTCCCTCTCTGAGGAA
GTGTCCCATCTGTAGAGGGACCATCAAGGGCACAGTGCGCACATTTCTCTCCTG
AACAAGACTAATGGTCCATGGCTGCAACTTCAGCCAGGAGGAAGTTCACTGTCAC
TCCCAGCTCCATTCGGAACTTGAGGCCAGCCTGGATAGCACGAGACACCGCCA
AACACACAAATATAAACATGAAAAACTTTTGTC
JAX Protocol
Protocol Primers
| Primer | 5' Label | Sequence 5' → 3' | 3' Label | Primer Type | Reaction | Note |
|---|---|---|---|---|---|---|
| 22401 | TCT TCC ATC ACA TGG CAT CA | Forward | A | |||
| 22402 | AAT GGA GCT GGG AGT GAC AG | Reverse | A |
Reaction A
| Component | Final Concentration |
|---|---|
| ddH2O | |
| Kapa 2G HS buffer | 1.30 X |
| MgCl2 | 2.60 mM |
| dNTPS-kapa | 0.26 mM |
| 22401 | 0.50 uM |
| 22402 | 0.50 uM |
| Glycerol | 6.50 % |
| Dye | 1.00 X |
| Kapa 2G HS taq polym | 0.03 U/ul |
| DNA |
Cycling
| Step | Temp °C | Time | Note |
|---|---|---|---|
| 1 | 94.0 | -- | |
| 2 | 94.0 | -- | |
| 3 | 65.0 | -- | -0.5 C per cycle decrease |
| 4 | 68.0 | -- | |
| 5 | -- | repeat steps 2-4 for 10 cycles (Touchdown) | |
| 6 | 94.0 | -- | |
| 7 | 60.0 | -- | |
| 8 | 72.0 | -- | |
| 9 | -- | repeat steps 6-8 for 28 cycles | |
| 10 | 72.0 | -- | |
| 11 | 10.0 | -- | hold |
JAX uses a very high speed Taq (~1000 bp/sec), use cycling times recommended for your reagents.
JAX uses a 'touchdown' cycling protocol and therefore has not calculated the optimal annealing temperature for each set of primers.
Strains Using This Protocol
This is the only strain that uses this protocol.
