Notes
Taqman qPCR protocols are run on a real time PCR instrument. Use an appropriate instrument specific Fluorophore/Quencher combination.
The genotyping protocol(s) presented here have been optimized for reagents and conditions used by The Jackson Laboratory (JAX).
To genotype animals, JAX recommends researchers validate the assay independently upon receipt of animals into their facility.
Reaction cycling temperature and times may require additional optimization based on the specific genotyping reagents used.

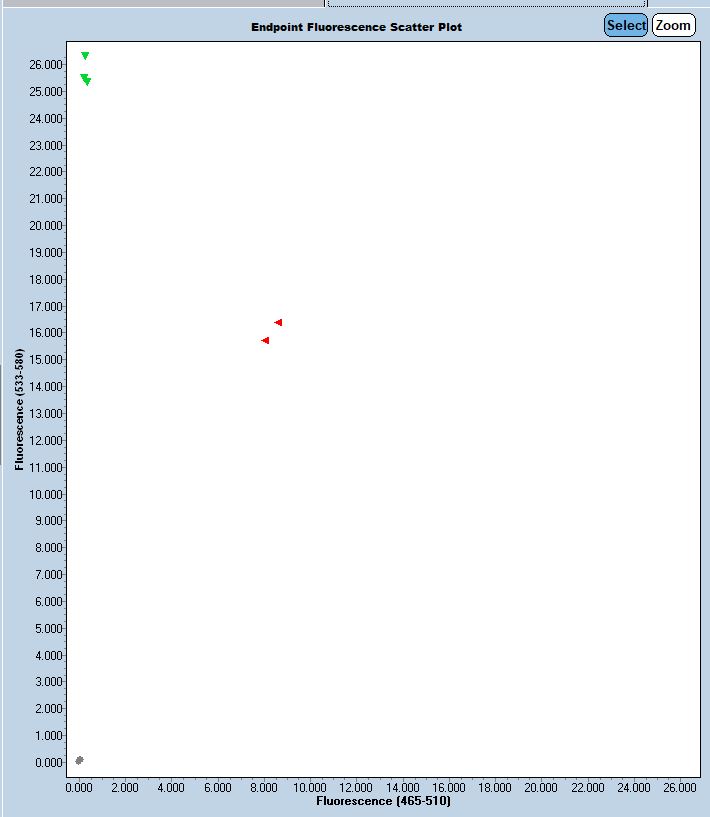

Expected Results
>chr19:30134148-30134260 113bp GAGCGGAGAGGTCTTCTAGG CACCAGAACACAAAATGCAG
Mut= 108 bp
Wt= 113 bp
Fam=Mut
Hex=Wt
Sequence
Wt Sequence:
GAGCGGAGAGGTCTTCTAGGGTCTTCATTCAAGAGAACCAGCCCGTTCCTCACTCATCAGGTGTTCAACAGgtttgtgtggcttcagcaaatcctgcattttgtgttctggtg
Mutant Sequence:
GAGCGGAGAGGTCTTCTAGGGTCTTCATTCAAGAGAACCAGCCCTCACTCATCAGGTGTTCAACAGgtttgtgtggcttcagcaaatcctgcattttgtgttctggtg
JAX Protocol
Protocol Primers
| Primer | 5' Label | Sequence 5' → 3' | 3' Label | Primer Type | Reaction | Note |
|---|---|---|---|---|---|---|
| 55126 | GAG CGG AGA GGT CTT CTA GG | Forward | A | |||
| 55127 | CAC CAG AAC ACA AAA TGC AG | Reverse | A | |||
| 55132 | Fluorophore-1 | CCA GCC CGT TCC TCA CTC A | Quencher-1 | WT Probe | ||
| 55133 | Fluorophore-2 | AGA ACC AGC CCT CAC TCA TCA G | Quencher-2 | MUT Probe |
Reaction A
| Component | Final Concentration |
|---|---|
| Kapa Probe Fast QPCR | 1.00 X |
| ddH2O | |
| 55126 | 0.40 uM |
| 55127 | 0.40 uM |
| Wt Probe | 0.15 uM |
| Mutant Probe | 0.15 uM |
| DNA |
Cycling
| Step | Temp °C | Time | Note |
|---|---|---|---|
| 1 | 95.0 | -- | |
| 2 | 95.0 | -- | |
| 3 | 60.0 | -- | |
| 4 | -- | repeat steps 2-3 for 40 cycles | |
| 5 | 40.0 | -- | Forever |
JAX uses a very high speed Taq (~1000 bp/sec), use cycling times recommended for your reagents.
Strains Using This Protocol
This is the only strain that uses this protocol.
