Notes
The genotyping protocol(s) presented here have been optimized for reagents and conditions used by The Jackson Laboratory (JAX).
To genotype animals, JAX recommends researchers validate the assay independently upon receipt of animals into their facility.
Reaction cycling temperature and times may require additional optimization based on the specific genotyping reagents used.

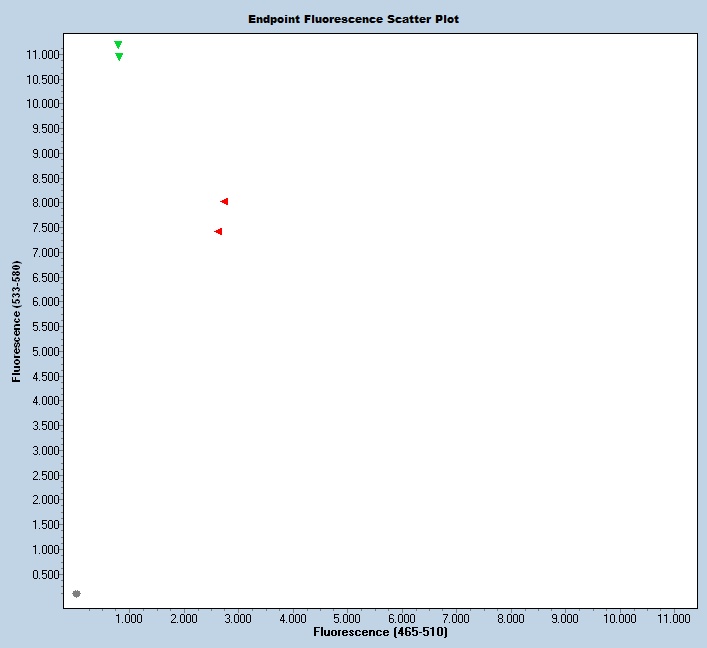

Expected Results
Sequence
CTGAGGACTGTGGCATTTGCACTAATTGCCTGGACAAGCCCAAGTTTGGTGGCCGCAATATAAAGAAGCAATGCT(g/a)CAAgtgagtgagtcttcctctgaggcagtgacctcacggtttgtcacatggggtgacaacctggtgtgcttgcac
JAX Protocol
Protocol Primers
| Primer | 5' Label | Sequence 5' → 3' | 3' Label | Primer Type | Reaction | Note |
|---|---|---|---|---|---|---|
| 53828 | TTG CAC TAA TTG CCT GGA CA | Forward | A | |||
| 53829 | TGT GAC AAA CCG TGA GGT C | Reverse | A | |||
| 53830 | Fluorophore-1 | AAG CAA TGC TGC AAG TGA GTG | Quencher-1 | WT Probe | ||
| 53831 | Fluorophore-2 | AGA AGC AAT GCT ACA AGT GAG TGA G | Quencher-2 | MUT Probe |
Reaction A
| Component | Final Concentration |
|---|---|
| Kapa Probe Fast QPCR | 1.00 X |
| ddH2O | |
| 53828 | 0.40 uM |
| 53829 | 0.40 uM |
| Wt Probe | 0.15 uM |
| Mutant Probe | 0.15 uM |
| DNA |
Cycling
| Step | Temp °C | Time | Note |
|---|---|---|---|
| 1 | 95.0 | -- | |
| 2 | 95.0 | -- | |
| 3 | 60.0 | -- | |
| 4 | -- | repeat steps 2-3 for 40 cycles | |
| 5 | 40.0 | -- | Forever |
JAX uses a very high speed Taq (~1000 bp/sec), use cycling times recommended for your reagents.
Strains Using This Protocol
This is the only strain that uses this protocol.
