Notes
Taqman qPCR protocols are run on a real time PCR instrument. Use an appropriate instrument specific Fluorophore/Quencher combination.
The genotyping protocol(s) presented here have been optimized for reagents and conditions used by The Jackson Laboratory (JAX).
To genotype animals, JAX recommends researchers validate the assay independently upon receipt of animals into their facility.
Reaction cycling temperature and times may require additional optimization based on the specific genotyping reagents used.

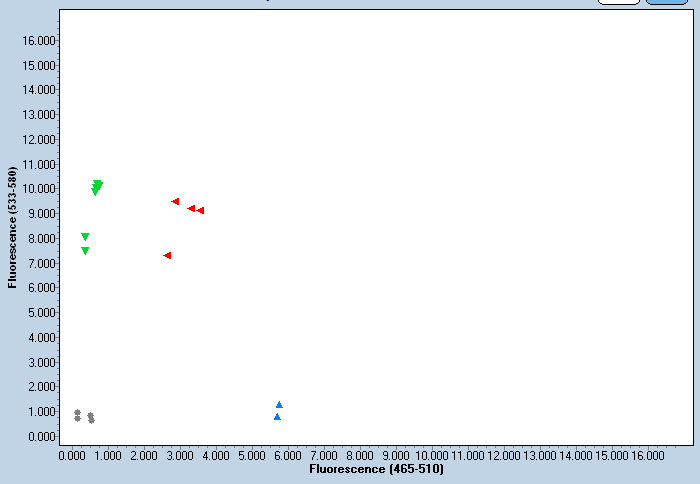

Expected Results
Mutant= 114 bp
Wild Type = 97 bp
>chr5:3622623+3622719 97bp AAGATGAAATGAAAATTAGACATCTTT GCTCCTGGTCACTAAGTGCT
Sequence
Wt Sequence (with deletion in lowercase):
GCCTTTCTACTTCTGATTCATTTACTTTATAAGATCCAGGAGTACTAAGCCTCAGTAGACATGTTCAAAGTTTACAGGACCTCCTACACTTgtgctcgattcagcatcagtgtctaggctttaagcatgagggagctgttccatcttatagctcaatattaggttattagcattttaattaatatgcaagtttaaatgttcatttttttcctgagtgttatgctattttacttcattctagctttgaacgatatgatcaaagagtttgtttccacgggaagcttggtggcactcatcgccacgagccagctccagcagtctctgcacccttcccttgtgtctgctcaaggaatccacacgtttcaatgtgtccagcaccttcagcctcccaatccggtaattcatacttagcacattataatctttttcttagaaactgcttttttttaatagttactgcttctaggagtttgtgcagatatttaagagcaacatatacaatttaagagcacagatttgaatttataatcatcaaaaacataagagcacagatttgaatttataatcatcaaaaacattatgtacttgctaaggaagtggctttcttagaattagtatttttttctaattgaagatgaaatgaaaattagacatcttttaacaatttggtgaagcatccctgctcacttCAGGACCTTATGCGCACCGAGCACTTAGTGACCAGGAGCAGGAGGAAGTATTCTCAGGCCGGTAAGCACAGTGGAGACACCTAAGA
JAX Protocol
Protocol Primers
| Primer | 5' Label | Sequence 5' → 3' | 3' Label | Primer Type | Reaction | Note |
|---|---|---|---|---|---|---|
| 48844 | AAG ATG AAA TGA AAA TTA GAC ATC TTT | Wild type Forward | A | Wt F | ||
| 48845 | GCT CCT GGT CAC TAA GTG CT | Common | A | Common | ||
| 48847 | Fluorophore-1 | TTG GTG AAG CAT CCC TGC | Quencher-1 | WT Probe | ||
| 48849 | TTC ATT TAC TTT ATA AGA TCC AGG AGT | Mutant Forward | A | Mut F | ||
| 48850 | Fluorophore-2 | ACC TCC TAC ACT TCA GGA CCT TAT G | Quencher-2 | MUT Probe |
Reaction A
| Component | Final Concentration |
|---|---|
| Kapa Probe Fast QPCR | 1.00 X |
| ddH2O | |
| 48844 | 0.40 uM |
| 48845 | 0.40 uM |
| 48849 | 0.40 uM |
| Wt Probe | 0.15 uM |
| Mutant Probe | 0.15 uM |
| DNA |
Cycling
| Step | Temp °C | Time | Note |
|---|---|---|---|
| 1 | 95.0 | -- | |
| 2 | 95.0 | -- | |
| 3 | 60.0 | -- | |
| 4 | -- | repeat steps 2-3 for 40 cycles | |
| 5 | 40.0 | -- | Forever |
JAX uses a very high speed Taq (~1000 bp/sec), use cycling times recommended for your reagents.
Strains Using This Protocol
This is the only strain that uses this protocol.
