Notes
Taqman qPCR protocols are run on a real time PCR instrument. Use an appropriate instrument specific Fluorophore/Quencher combination. The transgene genotype is determined by comparing ΔCt values of each unknown sample against known homozygous and hemizygous controls, using appropriate endogenous references.
The genotyping protocol(s) presented here have been optimized for reagents and conditions used by The Jackson Laboratory (JAX).
To genotype animals, JAX recommends researchers validate the assay independently upon receipt of animals into their facility.
Reaction cycling temperature and times may require additional optimization based on the specific genotyping reagents used.

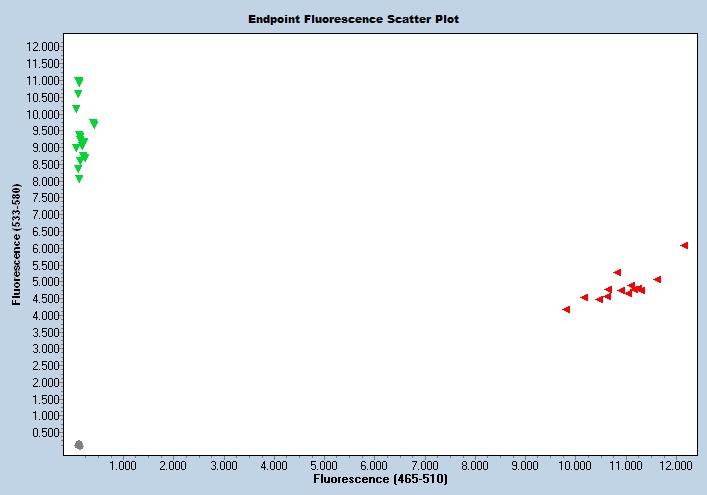

Expected Results
Mutant= 80 bp
Wild Type = 128 bp
>chr2:85195944-85196071 128bp CCCTACAGATCGGGGGTAAC TTCTGCCTGGTGACCTGT
Sequence
Wt Sequence:
Mutant Sequence:
702 bp deletion beginning at Chromosome 2 negative strand position 85,196,683 bp and ending after 85,195,982 bp (GRCm38/mm10). This mutation deletes 702 bp from ENSMUSE00000643986 (exon 1) including the ATG start site but retains the last 3 bp (CGG) in the exon
JAX Protocol
Protocol Primers
| Primer | 5' Label | Sequence 5' → 3' | 3' Label | Primer Type | Reaction | Note |
|---|---|---|---|---|---|---|
| 36610 | AGC AGC ATC CCT GTA ACT TGA | Mutant Forward | A | |||
| 36611 | TTC TGC CTG GTG ACC TGT | Common | A | |||
| 36612 | CCC TAC AGA TCG GGG GTA AC | Wild type Forward | A | |||
| 36613 | Fluorophore-1 | AGG GAC ACC GCG GGT A | Quencher-1 | MUT Probe | ||
| 36614 | Fluorophore-2 | CAT GGA GCC CTT GCT GAA | Quencher-2 | WT Probe |
Reaction A
| Component | Final Concentration |
|---|---|
| Kapa Probe Fast QPCR | 1.00 X |
| ddH2O | |
| 36610 | 0.40 uM |
| 36611 | 0.40 uM |
| 36612 | 0.40 uM |
| Wt Probe | 0.15 uM |
| Mutant Probe | 0.15 uM |
| DNA |
Cycling
| Step | Temp °C | Time | Note |
|---|---|---|---|
| 1 | 95.0 | -- | |
| 2 | 95.0 | -- | |
| 3 | 60.0 | -- | |
| 4 | -- | repeat steps 2-3 for 40 cycles | |
| 5 | 40.0 | -- | Forever |
JAX uses a very high speed Taq (~1000 bp/sec), use cycling times recommended for your reagents.
Strains Using This Protocol
This is the only strain that uses this protocol.
