Notes
The genotyping protocol(s) presented here have been optimized for reagents and conditions used by The Jackson Laboratory (JAX).
To genotype animals, JAX recommends researchers validate the assay independently upon receipt of animals into their facility.
Reaction cycling temperature and times may require additional optimization based on the specific genotyping reagents used.

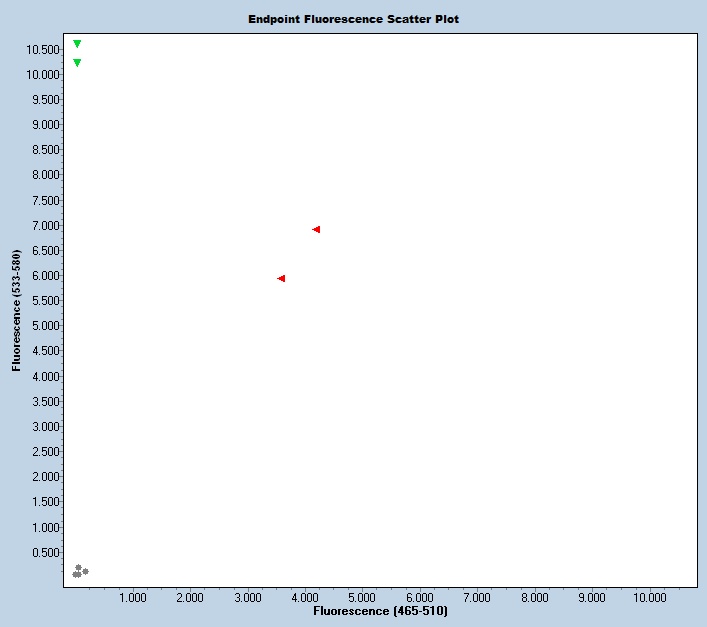

Expected Results
>chr4:155070675+155070771 97bp CCACTCTGCACCCTATGCT TGTTGCACCACTCGGTGA
Mutant = C, T, G
Wild type = T, C, C
Sequence
CGTGTGCAGAACCCCACTCTGCACCCTATGCTTAGAGGAACGAAGACACTCCACGGCCACACCTTG(t/c)GG(c/t)(c/g)ATCTCTTCTGCTGGGAGTGCATCACCGAGTGGTGCAACACCAAGgtactcgcgctcccgggcctg
JAX Protocol
Protocol Primers
| Primer | 5' Label | Sequence 5' → 3' | 3' Label | Primer Type | Reaction | Note |
|---|---|---|---|---|---|---|
| 53879 | CCA CTC TGC ACC CTA TGC T | Forward | A | |||
| 53880 | TGT TGC ACC ACT CGG TGA | Reverse | A | |||
| 53882 | Fluorophore-1 | ACC TTG TGG CCA TCT CTT CTG | Quencher-1 | WT Probe | ||
| 53883 | Fluorophore-2 | ACC TTG CGG TGA TCT CTT CTG | Quencher-2 | MUT Probe |
Reaction A
| Component | Final Concentration |
|---|---|
| Kapa Probe Fast QPCR | 1.00 X |
| ddH2O | |
| 53879 | 0.40 uM |
| 53880 | 0.40 uM |
| Wt Probe | 0.15 uM |
| Mutant Probe | 0.15 uM |
| DNA |
Cycling
| Step | Temp °C | Time | Note |
|---|---|---|---|
| 1 | 95.0 | -- | |
| 2 | 95.0 | -- | |
| 3 | 60.0 | -- | |
| 4 | -- | repeat steps 2-3 for 40 cycles | |
| 5 | 40.0 | -- | Forever |
JAX uses a very high speed Taq (~1000 bp/sec), use cycling times recommended for your reagents.
Strains Using This Protocol
This is the only strain that uses this protocol.
