Notes
The genotyping protocol(s) presented here have been optimized for reagents and conditions used by The Jackson Laboratory (JAX).
To genotype animals, JAX recommends researchers validate the assay independently upon receipt of animals into their facility.
Reaction cycling temperature and times may require additional optimization based on the specific genotyping reagents used.

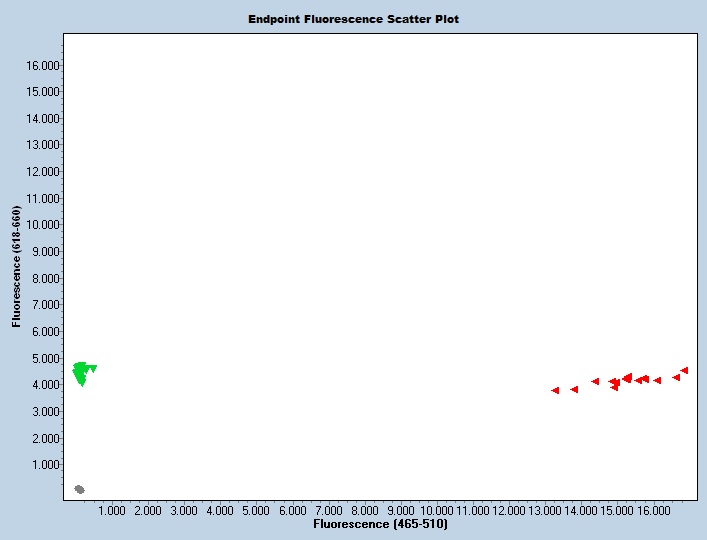

Expected Results
Tg= 119 bp
IPC = 74 bp
JAX Protocol
Protocol Primers
| Primer | 5' Label | Sequence 5' → 3' | 3' Label | Primer Type | Reaction | Note |
|---|---|---|---|---|---|---|
| 39324 | GTT GCT AAC CAT CTC CTC TCT G | Transgene Forward | A | CD68 | ||
| 39325 | GCC GTT TAT GAC TTT GCT CTT G | Transgene Reverse | A | rtTA M2 | ||
| 39326 | Fluorophore-1 | AGC TTC CCC TGG GCT TTT GG | Quencher-1 | Tg Probe | ||
| oIMR1544 | CAC GTG GGC TCC AGC ATT | Internal Positive Control Forward | A | |||
| oIMR3580 | TCA CCA GTC ATT TCT GCC TTT G | Internal Positive Control Reverse | A | |||
| TmoIMR0105 | Fluorophore-2 | CCA ATG GTC GGG CAC TGC TCA A | Quencher-2 |
Reaction A
| Component | Final Concentration |
|---|---|
| Kapa Probe Fast QPCR | 1.00 X |
| ddH2O | |
| 39324 | 0.40 uM |
| 39325 | 0.40 uM |
| oIMR1544 | 0.40 uM |
| oIMR3580 | 0.40 uM |
| Wt Probe | 0.15 uM |
| Mutant Probe | 0.15 uM |
| DNA |
Cycling
| Step | Temp °C | Time | Note |
|---|---|---|---|
| 1 | 95.0 | -- | |
| 2 | 95.0 | -- | |
| 3 | 60.0 | -- | |
| 4 | -- | repeat steps 2-3 for 40 cycles | |
| 5 | 40.0 | -- | Forever |
JAX uses a very high speed Taq (~1000 bp/sec), use cycling times recommended for your reagents.
Strains Using This Protocol
This is the only strain that uses this protocol.
