Notes

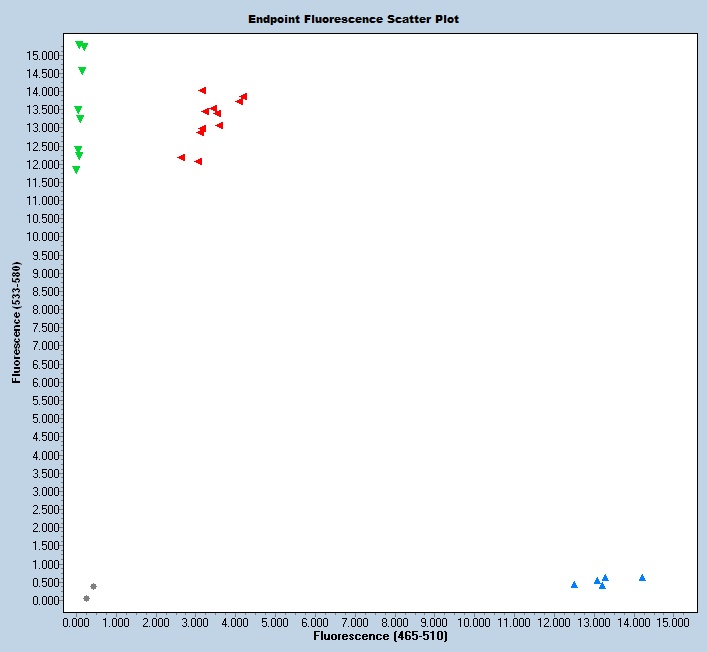

Taqman qPCR protocols are run on a real time PCR instrument. Use an appropriate instrument specific Fluorophore/Quencher combination. The transgene genotype is determined by comparing ΔCt values of each unknown sample against known homozygous and hemizygous controls, using appropriate endogenous references.
The genotyping protocol(s) presented here have been optimized for reagents and conditions used by The Jackson Laboratory (JAX).
To genotype animals, JAX recommends researchers validate the assay independently upon receipt of animals into their facility.
Reaction cycling temperature and times may require additional optimization based on the specific genotyping reagents used.
Expected Results
Mutant= 117 bp
Wild Type = 138 bp
JAX Protocol
Protocol Primers
| Primer | 5' Label | Sequence 5' → 3' | 3' Label | Primer Type | Reaction | Note |
|---|---|---|---|---|---|---|
| 30868 | TGT GAT CGC TTC TTT CGG TAA | Wild type Forward | A | |||
| 30869 | AGG AGG CCT GTC TGG AGT TC | Mutant Forward | A | |||
| 30870 | AGT GGC TGA GCT GAG ATA TGG T | Common | A | |||
| 30871 | Fluorophore-1 | ACC CTA CAC CTG CTT TGC TG | Quencher-1 | MUT Probe | ||
| 30873 | Fluorophore-2 | TGC TGA GCA GTC CGT GTT TA | Quencher-2 | WT Probe |
Reaction A
| Component | Final Concentration |
|---|---|
| Kapa Probe Fast QPCR | 1.00 X |
| ddH2O | |
| 30868 | 0.40 uM |
| 30869 | 0.40 uM |
| 30870 | 0.40 uM |
| Wt Probe | 0.15 uM |
| Mutant Probe | 0.15 uM |
| DNA |
Cycling
| Step | Temp °C | Time | Note |
|---|---|---|---|
| 1 | 95.0 | -- | |
| 2 | 95.0 | -- | |
| 3 | 60.0 | -- | |
| 4 | -- | repeat steps 2-3 for 40 cycles | |
| 5 | 40.0 | -- | Forever |
JAX uses a very high speed Taq (~1000 bp/sec), use cycling times recommended for your reagents.
Strains Using This Protocol
This is the only strain that uses this protocol.
