Genotyping Protocols Database
Protocol 26822: Sanger sequencing Assay - Tg(APP695)3Dbo-SEQ-alt 1
Version 1.2

Notes

The genotyping protocol(s) presented here have been optimized for reagents and conditions used by The Jackson Laboratory (JAX). To genotype animals, JAX recommends researchers validate the assay independently upon receipt of animals into their facility. Reaction cycling temperature and times may require additional optimization based on the specific genotyping reagents used.

Expected Results

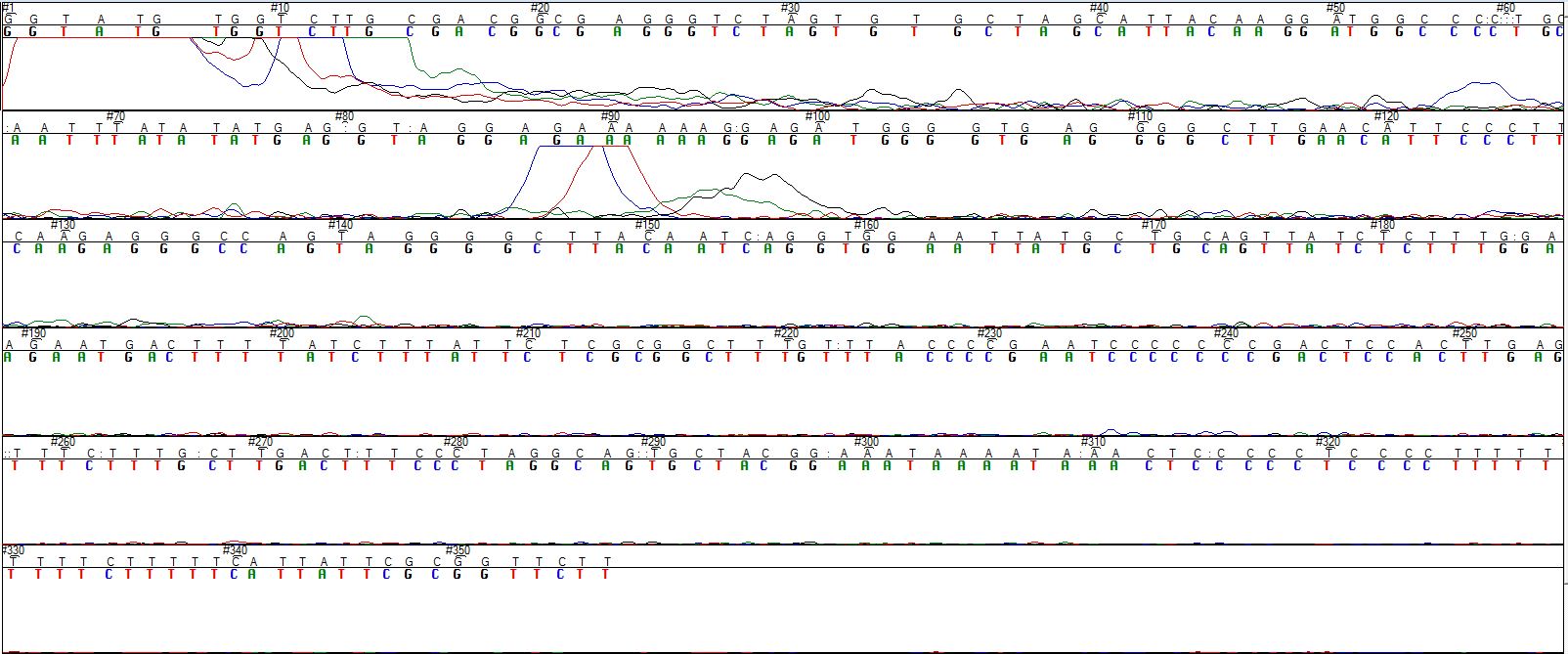

Sequence

GTTCTGGGTTGACAAATATCAAGACGGAGGAGATCTCTG

AAGTGaa(g/t)(a/c)tgGATGCAGAATTCCGACATGACTCAGG

ATATGAAGTTCATCATCAAAAATTG

JAX Protocol

Protocol Primers

Primer 5' Label Sequence 5' → 3' 3' Label Primer Type Reaction Note
20753 TTG GAT TTT CGT AGC CGT TC Transgene Reverse A
oIMR3610 AGG ACT GAC CAC TCG ACC AG Transgene Forward A

Reaction A

Component Final Concentration
ddH2O
Kapa 2G HS buffer 1.30 X
MgCl2 2.60 mM
dNTPS-kapa 0.26 mM
20753 0.50 uM
oIMR3610 0.50 uM
Glycerol 6.50 %
Dye 1.00 X
Kapa 2G HS taq polym 0.03 U/ul
DNA

Cycling

Step Temp °C Time Note
1 94.0 --
2 94.0 --
3 65.0 -- -0.5 C per cycle decrease
4 68.0 --
5 -- repeat steps 2-4 for 10 cycles (Touchdown)
6 94.0 --
7 60.0 --
8 72.0 --
9 -- repeat steps 6-8 for 28 cycles
10 72.0 --
11 10.0 -- hold
JAX uses a very high speed Taq (~1000 bp/sec), use cycling times recommended for your reagents.
JAX uses a 'touchdown' cycling protocol and therefore has not calculated the optimal annealing temperature for each set of primers.

Strains Using This Protocol

Stock Number Strain Name
003378 B6C3-Tg(APP695)3Dbo Tg(PSEN1)5Dbo/Mmjax
005866 B6.Cg-Tg(APP695)3Dbo Tg(PSEN1dE9)S9Dbo/Mmjax
2 strains use this protocol
